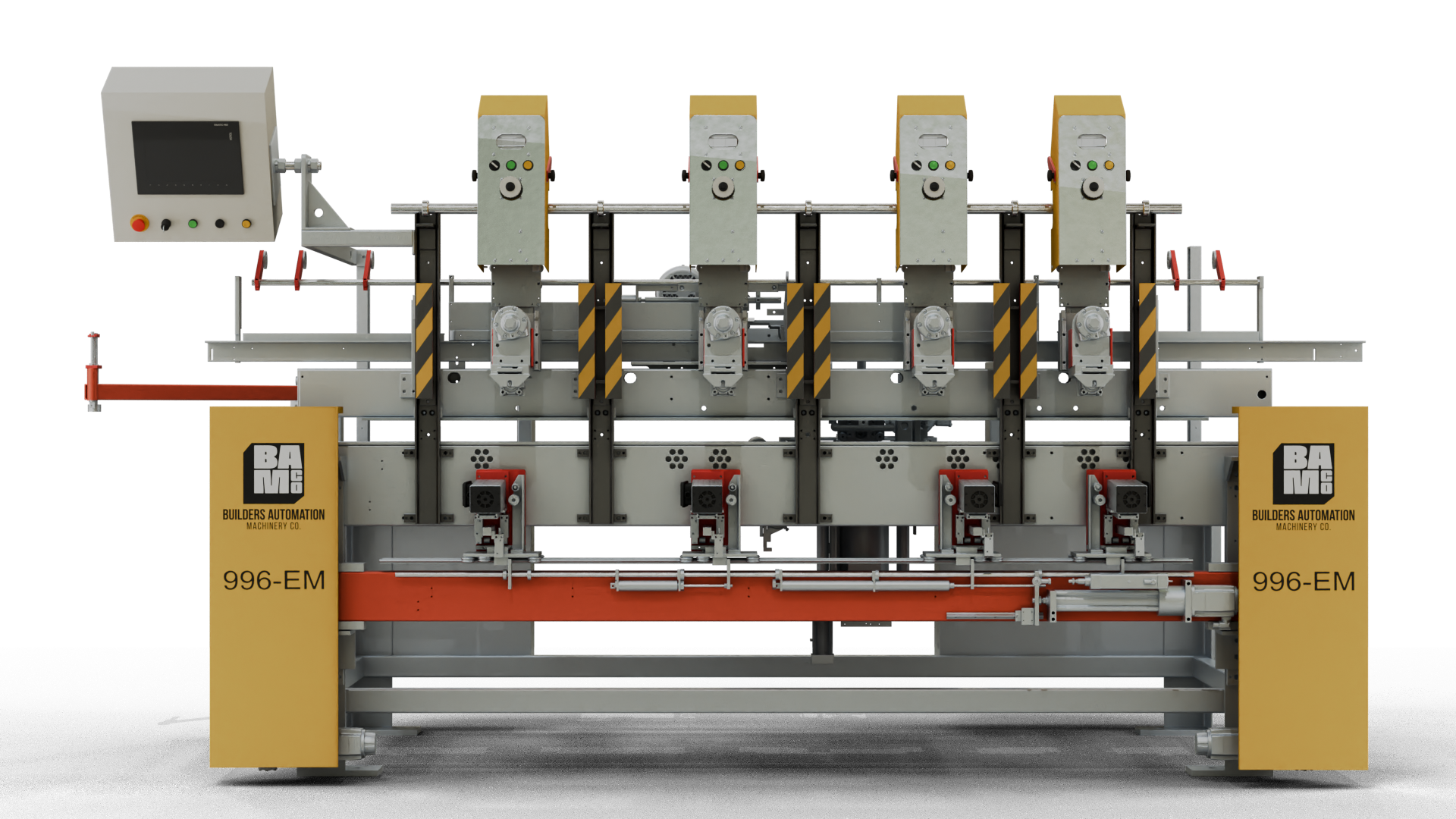

996-EM Door Machine

Achieves under 30 seconds per door (full cycle from one door to the next)*
New electro-mechanically driven router bar that offers industry leading speed, accuracy, and adjustability
Only machine that integrates the strike preparation eliminating the need for a separate strike routing machine and operator.
New 3-hp high-frequency spindles are the most powerful hinge routers used in the industry
Hinge pocket geometry is adjustable from the touchscreen in 0.001” increments
Ability to rout different hinge radii (with the use of different bit diameters)

Door dimension minimums and maximums:
Height: 6’8” to 8’
Width: 1’6” to 4’
Thickness: 1-3/8” and 1-3/4”
Routs square edged doors and 3-degree beveled doors (selected on touchscreen)
Programmable lock bore and dead bolt locations
Bi-lingual touch screen with intuitive layout Machine handles raised-panel / raised molding doors

Specifications

Gross Weight	Approx 6,600 pounds base model (9,000 pounds with 4 hinge applicators)
Measures	Approx 12′ x 8′ x 8′
Cycle time	Approx. 30 seconds for all door sizes
Air Requirements	120 psi at 20cfm for base model (minimum 1″ diameter unrestricted line), 35cfm with applicators, and 60cfm with Applicators and Loader
Electrical Requirements	208/230V three-phase at 70 amps
Note	Must install grounding rod for processor protection

Flush, three degree hinge mortising.
Model 1296 Automatic Door Assembly Machine completes the pre-hung door process by adding and securing the jambs to the manufactured door as final preparation for shipping.
Model 1550 Hinge Applicators provide faster processing by virtually automating the hinge application process.
Model 2001 Door Loader can be set up inline for automatic positioning and loading of doors.
Multi-bag Portable Vacuum/Dust Collector (power supplied with Door Machine).
Parts Kit for fast handling of user-replaceable parts.
Pre-drill option to eliminate splitting jambs, puckering and assist in accurate screw placement.
