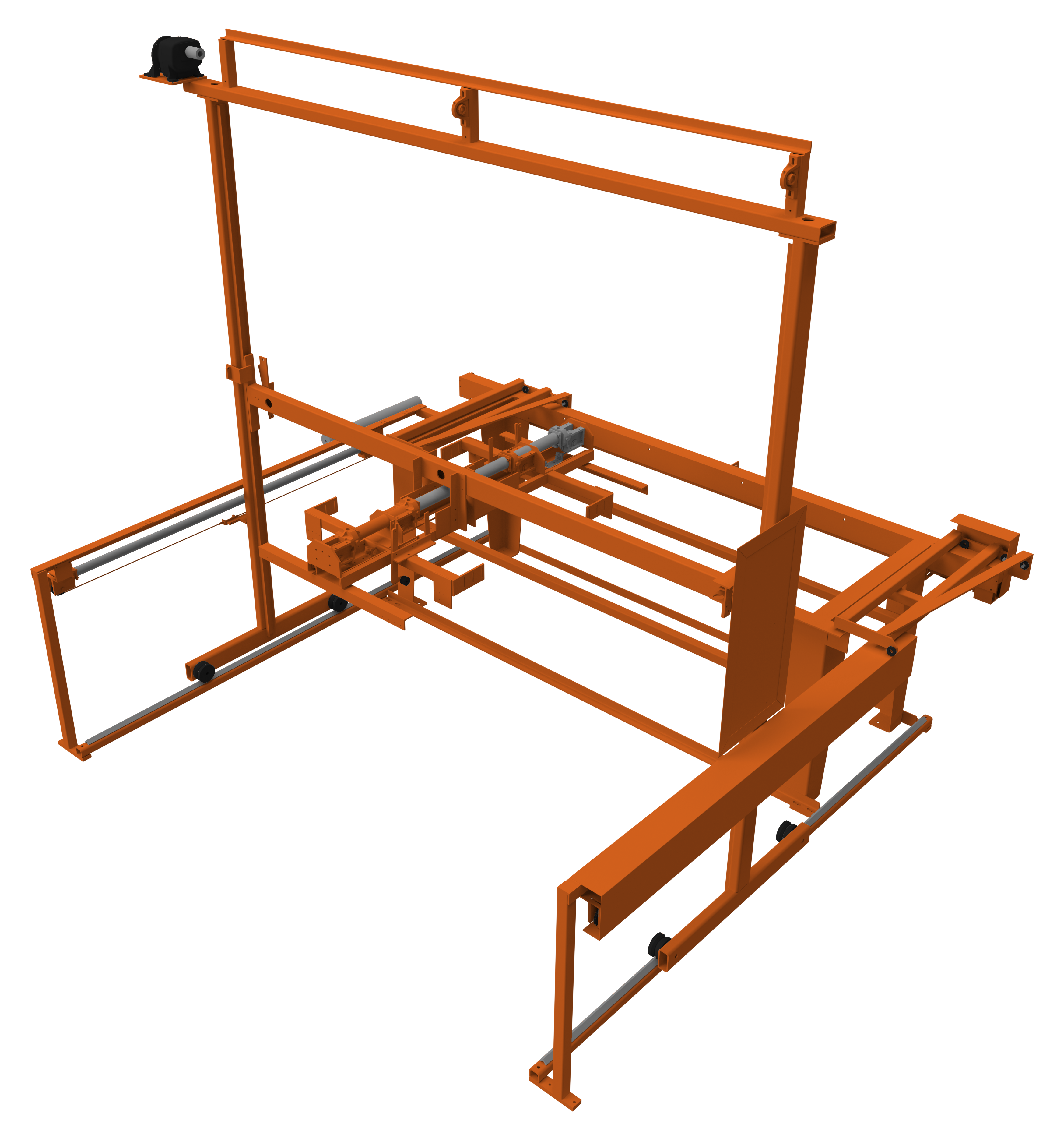

Door Loader

  • Fully electronic, programmed Allen Bradley controller automatically manages the loading process
  • Positions door stacks adjacent to Pre-Hung Door Machine’s processing intake (996E-TS), reducing demands on operator
  • Utilizes powerful, heavy duty pneumatic motor and heavy duty drive train for reliable operation during demanding, continuous start-and-stop use
  • Trouble-free, mechanical memory prevents unnecessary action of gantry as door stack height changes during processing
  • Mar-proof clamp automatically adjusts to any type or size of door
  • Handles stacks of steel, solid-core, or hollow-core doors 6′ to 8′ high (including skid)
  • Comes with manufacturer’s standard 1 year warranty


Gross Weight Approx. 2,000 pounds
Measures Approx. 10′ x 10′ x 11′
Cycle time Approx. 30 seconds
Air Requirements 120 psi at 20cfm
(minimum ½” diameter unrestricted line)
Electrical Requirements 120V single-phase at 15 amps
(power provided from door machine)

Available Options

  • Ball Catch Drill Unit

  • Unloader

  • Parts Kit for fast handling of user-replaceable parts
