5-Axis CNC Multi-Function
Stair Router
- Fully programmable CNC (Computer Numeric Control) 5-axis servo driven machine
- X Axis
- Y Axis
- Top Z Axis (top router depth control)
- Bottom Z Axis (bottom router depth control)
- A Axis (advancing of board)
- Programmable Touch Screen for simple stair characteristic input by operator
- Programmable Touch Screen for landing cut both top & bottom for open, box, and contemporary stair profiles
- Two (2) high frequency routers with 7.5 HP/24,000 RPM fan-cooled spindles that can accommodate shanks of ½” or 5/8“ diameter
- Accepts one or two stringers at a time – ¾”, 1“ or 1- ½” thick for a total of 3“ maximum thickness and 7- ¾” to 15- ¾” wide
- Extra wide ¾” guide rails for more bearing surface with a 3- ¼” high fence
- Five (5) cylinder clamps – 3 fixed and 2 adjustable – for up to 2,950 pounds of vertical stringer clamping force with an additional 1,180 pounds of horizontal clamping force, for a total of 4,130 pounds of force holding the stringer in place
- Self-centering feed system on linear bearings for better support and elimination of wear on the brass parts
- Dust collection cups on each router for clean, efficient operation
- Accommodates staircase angles from 20 degrees to 45 degrees and riser kickback from 5 degrees to 11 degrees with landing cut
- Cuts up to ½” deep in yellow pine at the maximum rate of 20″ per second and an open stringer in a single cut
- Programmable to cut any combination of box, contemporary, or open stairs including landing cuts
- Completes the top and bottom landing cut without additional handling or manual sawing
- Adjustable settings for wedge fit or material variances
- Comes with manufacturer’s standard 1 year warranty

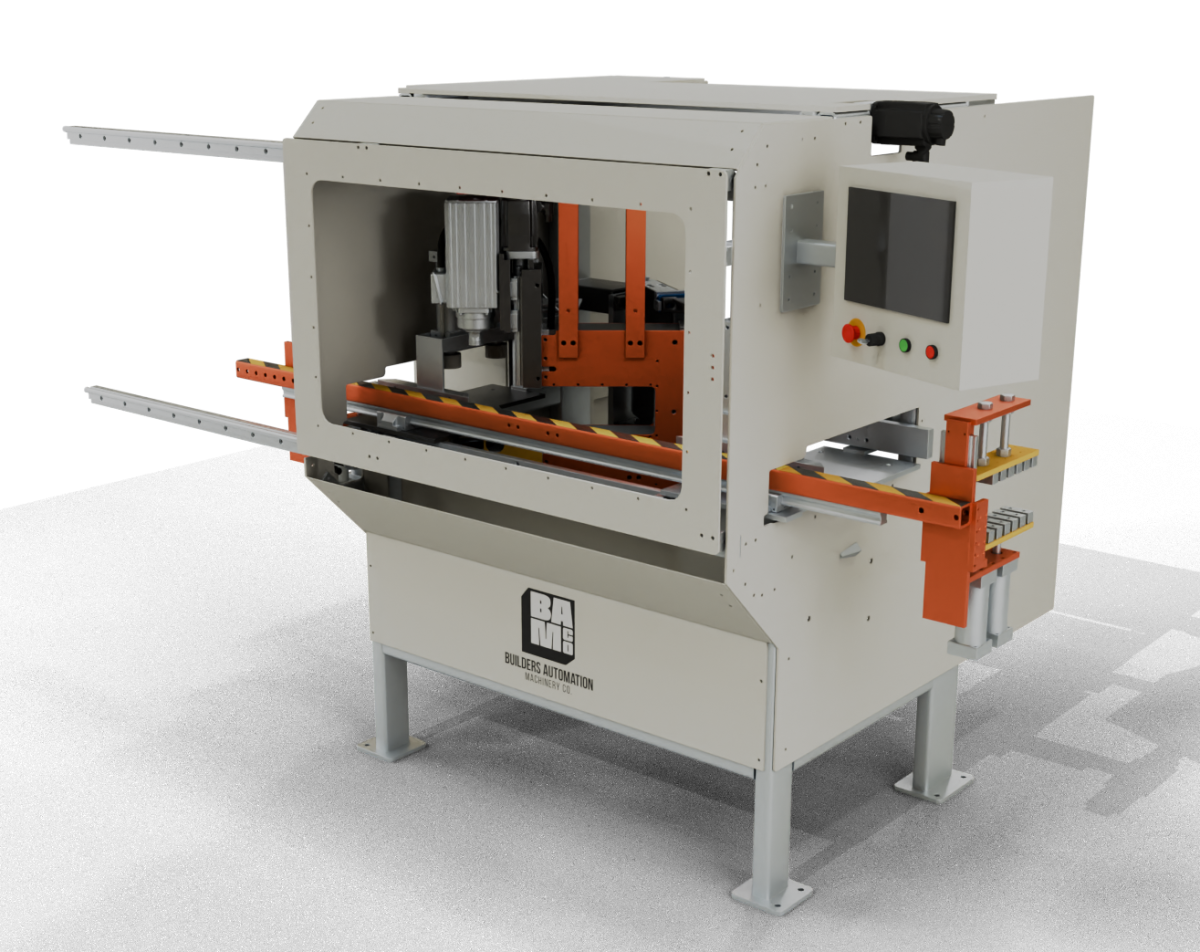

MFSR 5 Axis CNC Stair Routing Machine
MSFR 5 Axis Multi Function Stair Routing Machine User Interface
Specifications
| Gross Weight | Approx. 3,500 pounds |
|---|---|
| Measures | Approx. 8” x 6’5” x 7“ |
| Cycle time | 10 seconds per 7/11 tread in 1 or 2 stringers |
| Air Requirements | 110psi at 15cfm(minimum ¾” diameter unrestricted line) |
| Electrical Requirements | 230V 3-phase at 70 amps |
Available Options
- Multi-Bag Portable Vacuum/Dust Collector
- Parts Kit for fast handling of user-replaceable parts
